Material synthesis and design optimization of biomaterials for biomedical implant applications

Abstract

Close



Introduction:

In the modern era, the use of biomaterials in orthopaedics has revolutionised the healthcare sector. Traditionally, some non-biodegradable materials such as titanium and stainless steel are used as biomaterials. However, issues such as toxicity, poor tissue adhesion, and stress-shielding effect can occur with non-biodegradable materials for bone fracture fixation. Several biodegradable materials have been developed to resolve these issues but have not yet been appropriately industrialized for implant applications. These substances can be classified into metals, ceramics, and polymers, which can be blended to create composites that enhance biocompatibility and biomechanical characteristics.

Methods:

This study began by contrasting the biocompatibility and mechanical compatibility among various alloys: biodegradable low entropy (BLE) alloys, biodegradable medium entropy (BME) alloys, biodegradable high entropy (BHE) alloys, and non-biodegradable medium entropy (NBME) alloys. Additionally, the design morphology of bio-implants like plates, screws, and others was inspected. Moreover, a meta-analysis was conducted to optimize the design of biomaterials, ensuring appropriate biocompatibility and degradation rate. A subsequent statistical analysis was executed to determine the optimal material concentration for bio-implant alloy creation.

Results:

Initially, in this paper, the advantages of biodegradable materials over conventional non-biodegradable materials are discussed and bibliometric analysis is done to show recent research contributions in the field of biomedical implant application. Then compared biocompatibility and mechanical compatibility among BLE alloys, BME alloys, BHE alloys, NBME alloys. Furthermore, investigated the design morphology of bio-implants such as plates and screws. Also presented a meta-analysis for design optimization of biomaterials to meet suitable biocompatibility and biodegradation rates and presented a statistical analysis among them, which helps to select the appropriate material concentration for bio-implant alloy formation.

Conclusion:

It was observed that in biodegradable materials, tensile strength is in the pattern of NBME > BHE > BME > BLE, and the degradation rate is in the pattern of BME > NBME > BHE > BLE. This study suggests that biodegradable materials (BLE and BME) are a much better choice than non-biodegradable materials in orthopaedic applications. It was also observed that a Biodegradable locking compression plate (BLCP) can provide the necessary strength and performance. Further, the systematic meta-analysis presented herein furnishes crucial data to researchers, guiding them in enhancing the efficiency of diverse biomaterials and optimizing their designs.

Keywords: Biomaterials, Biodegradable, Low medium and high entropy alloys, Design morphology, Implant, Statistical analysis

Introduction

A bone fracture is a medical condition in which the shape or contour of bone changes due to the impact of external forces or injuries under many biological and mechanical circumstances such as injuries during physical activities, vehicle accidents, accidental falls, or weakening of bones because of aging as well an underlying disease.^1-4 Under fracture conditions, broken or cracked bones are stabilized and supported to handle the weight of the body and the relative movement of the cracked bone during the process of fracture healing.^5-7 Open (skin break) or closed (no skin break) are the two major categories of fractures that will be broadly focused. In between these two categories, open fractures are more prone to a higher risk of infection as they surround soft tissue. According to the characteristics of the force, long bone fractures can be classified.⁸ Once a fracture happens, a unique process of bone self-healing starts automatically to get healed from injuries.⁹ According to local motion at the fracture location, healing is classified as primary or secondary. The cortex actively tries to restore continuity between the fractured pieces during primary healing. Only when rigid internal fixation is used to stabilize the fracture fragments’ alignment and reduce inter-fragmentary motion, this procedure occur at that time.¹⁰ At the site of the fracture, soft tissues react during healing. The periosteum initiates a response to bone injury that is affected by how much the bone fragments can move cyclically. This response occurs in four phases that occur sequentially, as illustrated in Fig. 1.¹¹

Close

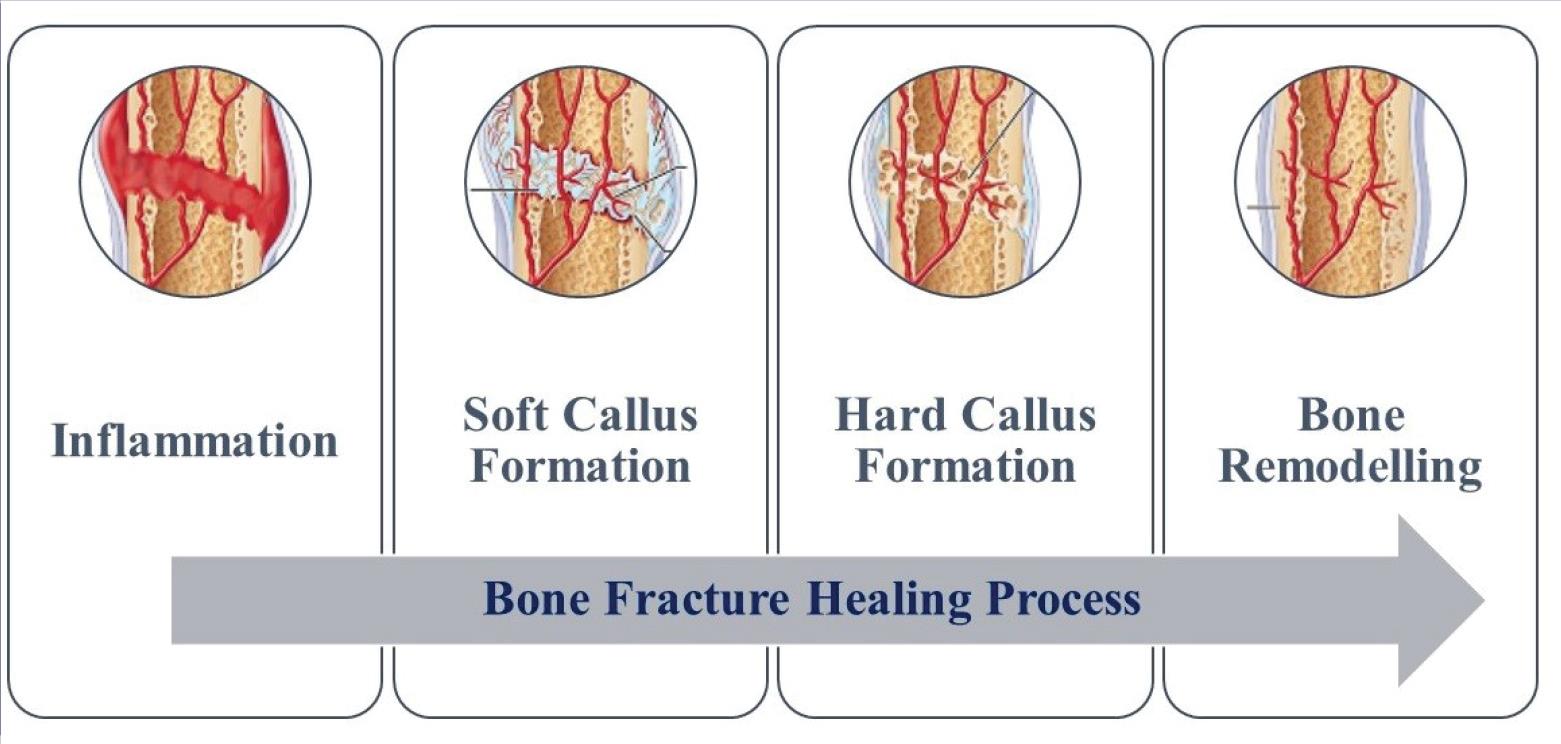

Fig. 1.

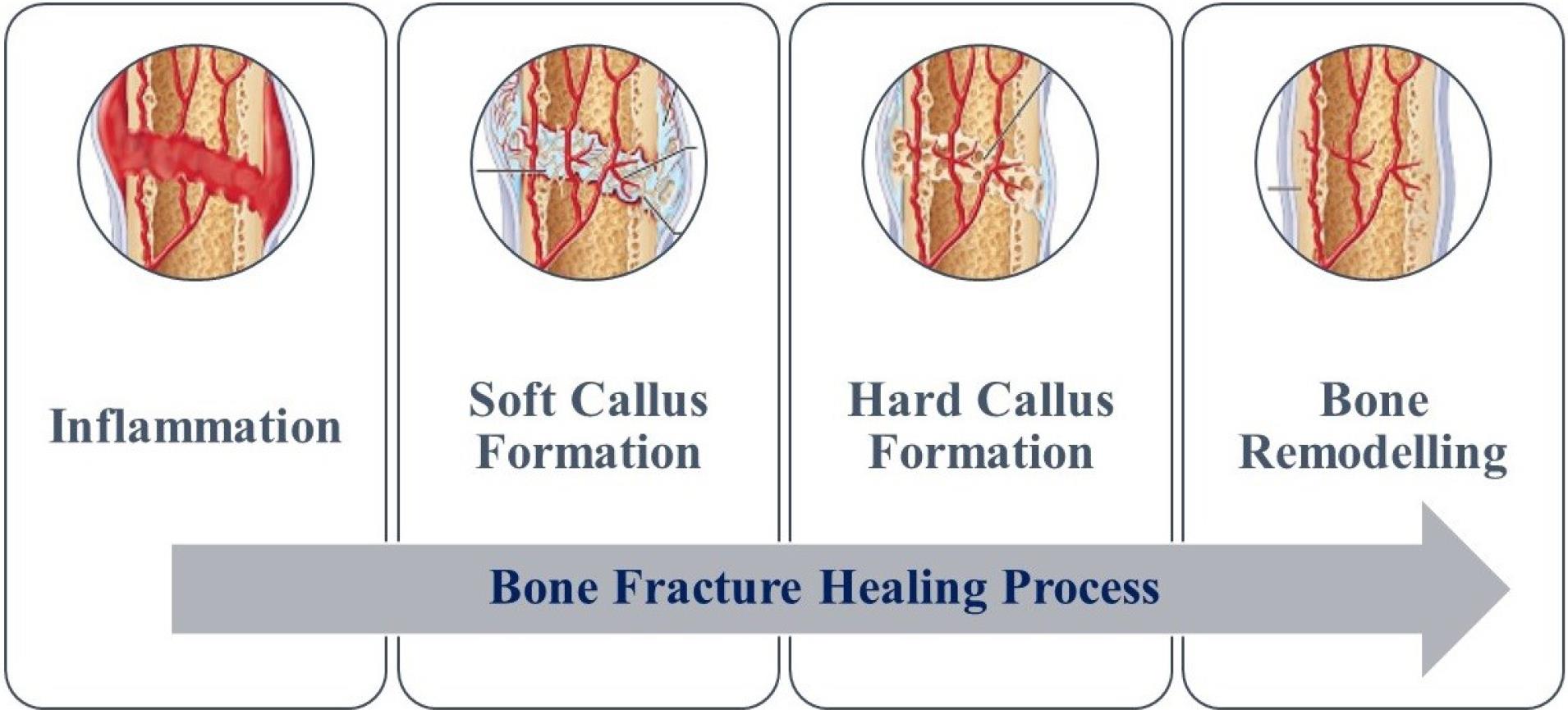

Stages of bone fracture healing process

Fig. 1.

Stages of bone fracture healing process

When an injury occurs, a hematoma is formed at the damaged tissue site. Following the inflammatory response, the bone's vascular supply is disrupted, leading to a decrease in oxygen and nutrient supply to the affected area. Platelets release various factors and the bone loses mechanical stability. Inflammatory cells, such as leukocytes and macrophages, may enter the surrounding area during the injury. The inflammatory response peaks within the first 24 hours to around 7 days post-injury. During the inflammatory stage, the cells that are sensitized and stimulated begin producing fibroblasts, intracellular material, supporting cells, and new vessels. With fibrin-rich granulation tissue and fibrovascular tissue, the hematoma could be interchanged. After that, fibrocartilage forms and strengthens the extremities of the bones. Which is termed as soft callus formation. During the fracture repair process, soft callus formation occurs, followed by the replacement of cartilage fibrovascular tissue with vessel invasion via endochondral ossification in the hard callus formation stage. The final stage of fracture repair is bone remodelling, where the woven bone is gradually replaced by lamellar bone to support mechanical loads and restore the anatomical structure of the pre-injury bone. Osteoclasts resorb the hard callus, and lamellar bone formation follows.¹¹

To reduce the risk of issues caused by external supports, doctors are performing surgical procedures to implant supports internally to stabilize fractured bones with some implants, such as plates, screws, nails, or wires.⁸ The engineered medical devices are designed to replace and support the fractured biological structure of human body parts. These devices are termed bioimplants and provide support to a given host. The interaction between the human body with materials is determined by biomaterial surface modification. In recent years, substantial development in the biomedical field has increased the research scope for the wide application of bone implants, bone plates, and screws.¹⁰ The success of bioimplants does not only depend on their mechanical properties but also on their surface interaction with human body tissues. Therefore, the research in biomaterials for implants can be explored as a broad area ranging from material selection, design, and surface modification.¹² There are different categories based on which biomaterials are classified. These can be done based on origin, structure, function, and degradability. Based on origin, biomaterials are classified as natural materials (such as collagen, hyaluronic acid, chitosan, and silk)¹³ and synthetic materials (such as polymers, ceramics, and metals).¹⁴ Based on structure, it is categorized as composites (such as metal-polymer composites and ceramic-polymer composites)¹⁵ and surface-modified biomaterials.¹⁶ Similarly, based on function, it is categorized as load-bearing biomaterials (such as metals and ceramics),¹⁷ non-load-bearing biomaterials (such as polymers and hydrogels),¹⁸ bioactive biomaterials (such as hydroxyapatite and some ceramics),¹⁹ and biodegradable biomaterials.²⁰ The choice of biomaterials in healthcare applications is determined by the application used and several parameters, such as mechanical properties, biocompatibility, and surrounding tissue response characteristics. In some alloys, the interfacial bonding with surrounding tissues is weak, which may lead to the failure of the implant. This affects the movement of the interface. The weakening of interfacial bonding and premature implant failure is due to corrosion and surface incompatibility.²¹ Sometimes, this may cause toxic reactions with surrounding tissues in the human body.²² Physiological fluids interact with metallic materials in an implant, leading to gradual dissolution and the formation of corrosion products. These products are metabolized or removed from around the implant before excretion.^23,24 According to a study presented by researchers in the field of biomaterials for implant design and manufacturing, the following research questions are derived that direct towards novel research contribution of this paper as shown below:

Research questions

• RQ1: Why biodegradable materials are preferred over non-biodegradable materials? What are the factors that decide the biocompatibility of materials?

• RQ2: How is orthopaedic implant morphology or geometry correlated with implant biocompatibility?

• RQ3: How progressively research contributions are presented in the manufacturing and designing of biodegradable materials.

• RQ4: Are manufacturing processes and biocompatibility correlated?

Research contributions

• To fulfil RQ1, the paper presented a systematic bibliometric analysis to observe the biomaterial evolution trends in orthopaedics for implant design.

• To fulfil RQ2, the paper presented an analytical review of design morphology (Geometry) used on different types of implants.

• To fulfil RQ3, the paper presented a systematic meta-analysis of all the types of research conducted in the manufacturing of biodegradable materials.

• To fulfil RQ4, the paper presented some statistical analysis to show the correlation between the manufacturing processes and biocompatibility.

As compared to existing recent review contributions of researchers, the novel contribution of this paper is presented in Table 1.

Bibliometric analysis

This paper first aims to observe the advancements of material science in bone implant design. To fulfil this objective, a bibliometric analysis is done by evaluating various case studies and research articles. For a research article selection, a methodology having three basic steps is adopted:

• Selection strategy: Selection of Research Article Source and Selection of Keywords for searching

• Inclusion strategy: Inclusion according to paper type as research, review, book articles, and bibliometric analysis with quality assessment.

• Meta-Analysis: Feature characterization of articles

Selection strategy

To conduct a systematic meta-analysis, several phases must be considered according to the PRISMA-P checklists.³⁶ To create a selection strategy, we first identified relevant research article databases and libraries related to biomaterials for designing bone fracture implants. The selection process involved the extraction of pertinent information, the application of search strings, and the review of study records to identify relevant articles. With over 100 journals publishing thousands of pertinent articles, two basic steps were taken for the selected strategy, “Selection source of research publications and keywords for searching articles”. To identify relevant data sources, a Google Scholar search yielded the top data sources. Among them, four are selected. In each source individually, such as “ScienceDirect/IEEE/Springer and T&F”, articles are sorted according to keywords such as “Biomaterials for bone implant design”. Then it was observed that research drastically grows from 2014 to till date. Therefore, for bibliometric analysis, we have selected research articles from 2014. The selection strategy identified relevant articles on biodegradable bone implants and design optimization. Four databases were searched, including ScienceDirect, IEEE, Springer, and T&F, using different search terms related to biodegradable bone implants and design optimization. Number of articles found for each combination of search terms and database. For example, the combination of “Biomaterials” and “bone implants” yielded 36,787 articles on ScienceDirect, 270 articles on IEEE, 12,403 articles on Springer, and 4,829 articles on T&F. This demonstrates the importance of selecting appropriate search terms and databases to retrieve relevant articles for a systematic review.

Inclusion strategy

The articles were then classified into different types, such as research, review, book chapters, conferences, and others. The classification of articles is performed based on the type of articles and concerning materials used, as illustrated in Fig. 2. In addition to manually collecting research documents, the paper conducted a bibliometric analysis on the Scopus database using various search terms related to biomaterials for bone implants, including “Biomaterials” and “bone implants,” “Biodegradable” and “bone implants,” “Design Optimization” and “biodegradable” and “bone implants,” “Degradation” and “Biodegradable” and “bone implants,” and “Degradation and design optimization” and “Biodegradable and bone implants.”

Close

Fig. 2.

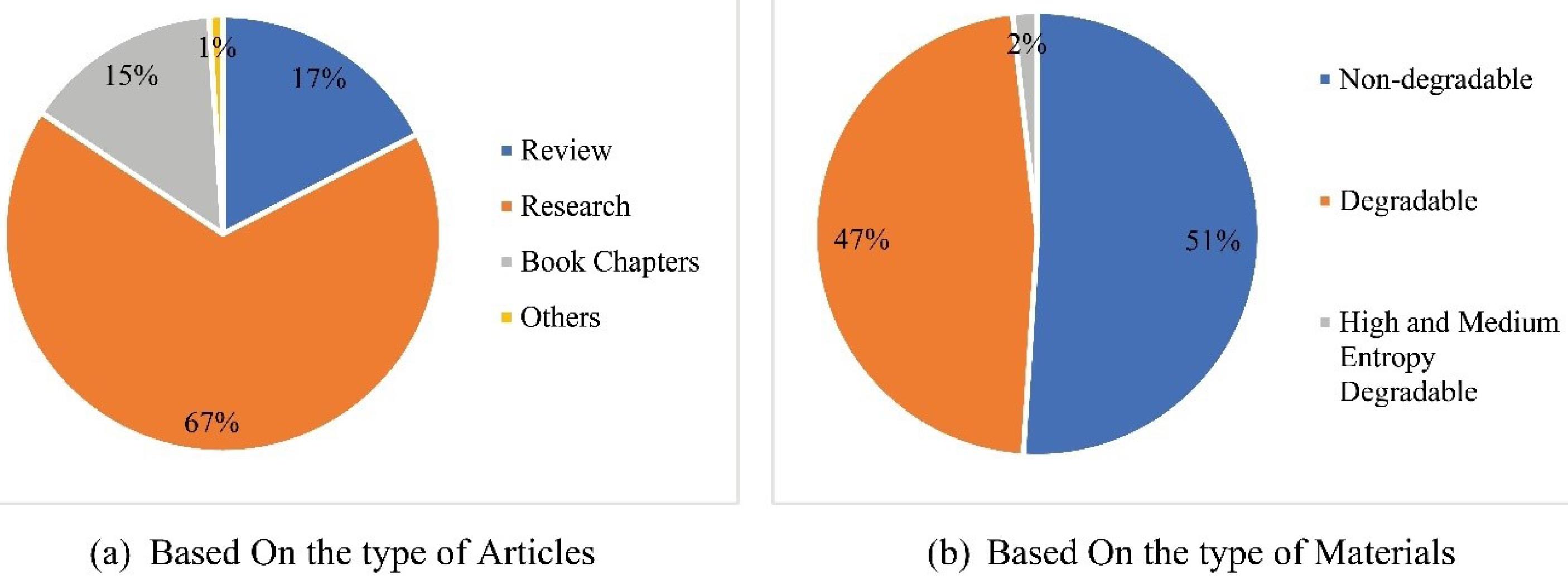

Bibliometric analysis.

Fig. 2.

Bibliometric analysis.

A questionnaire is a research tool used to collect data through a series of questions. For bibliometric analysis, the questionnaire has been specifically designed to evaluate the quality of selected papers in a research study. The papers are categorized as low, average, or high quality based on a quality score (QS) derived from the following five questions. The five questions could vary depending on the study but could include aspects such as the relevance of the research question, the methodology used, the validity of the results, the significance of the findings, and the overall organization and clarity of the paper. The responses to each question are typically given a score, and the overall quality score is derived by summing the scores from all questions.

• Is there a reflection of the entire content of the paper in the abstract?

• Is the abstract designed to reflect the background, problem, aim and objectives, methods and materials used, and well-defined result findings?

• Do the research gaps properly entertain with relevant contributions?

• Consistency of the result reflected in the conclusion or not?

• Was the paper published in a well-indexed journal?

Responses to the questions are limited to two options, “No” or “Yes”, represented by 0 and 1, respectively.

Meta-analysis

This section discusses a meta-analysis of biomaterials for implant design, which involves the statistical analysis of data from multiple studies to assess the efficacy of different materials and designs. Furthermore, recent advancements in biodegradable materials and implant design have led to the development of novel biodegradable implants. The subsequent subsections highlight recent contributions in this area by researchers.

Biomaterials for implant applications

Biomaterials play an important role in the development of biomedical implants. A biocompatible biomaterial does not cause a detrimental or toxic reaction when it comes in touch with living tissue^37,38. The material should also have suitable mechanical qualities to support the implant's intended function over time.³⁹ Metals (e.g., titanium),⁴⁰ ceramics (e.g., hydroxyapatite),⁴¹ polymers (e.g., polythene),^42,43 and composites (e.g., carbon fibre reinforced polymers)⁴⁴ are examples of biomaterials that can be used for manufacturing implant. Each material has distinct qualities that make it ideal for specific applications,⁴⁵ as illustrated in Fig. 3.

Close

Fig. 3.

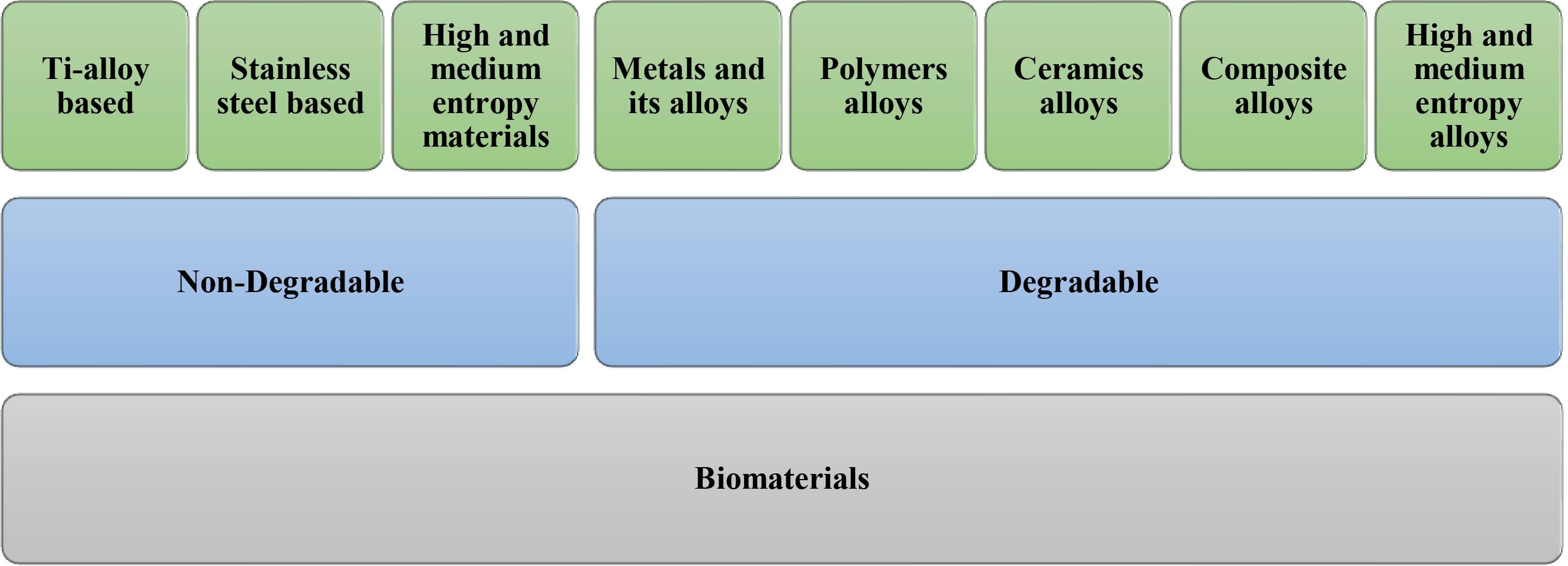

Categorization of biomaterials for implant design.

Fig. 3.

Categorization of biomaterials for implant design.

Doctors often use surgical procedures and implants such as bone plates, screws, nails, or wires to support fractured bones and promote healing. These implants can be non-biodegradable or biodegradable.^46-48 Non-biodegradable implants require secondary surgery for removal after the bone has healed. Metallic non-biodegradable implants are commonly used to fix broken bones, but they can have disadvantages as they require a second surgery for their removal. Some of the common examples of non-biodegradable metallic implants are Ti-based alloys,⁴⁹ cobalt-based alloys,⁵⁰ stainless-steel alloys,⁵¹ and high-entropy and medium entropy materials.^52-54 Although metallic (non-degradable) implants are frequently employed to mend fractures, they have downsides, such as the requirement of subsequent surgery for extraction and the possibility of causing harm to certain patients.^55,56 Consequently, biodegradable implants, composed of natural or artificial substances that break down over time in the body, offer a viable solution. The biocompatibility and biodegradability of these implants with the healing process of the bone are crucial considerations.^57-59 Additionally, an organic material breakdown is an electrochemical process.⁶⁰ The materials used for producing biodegradable implants can vary and include metals, ceramics, polymers, metal alloys, and composite materials. The compatibility of the implant material with the body’s cells and tissues determines whether it is biotoxic, bioinert, bioactive, or biodegradable.⁶¹ This article concentrates on the investigation of biodegradable materials and their performance within the body. Some biodegradable metals, like magnesium, zinc, iron, and calcium, are biocompatible and have essential nutrients for bone healing, and also have good mechanical strength and stability during the initial stage of healing.⁶² Some of the biomaterials used for manufacturing bone implants are illustrated in Table 2.

Kuffner and Facci explored the biocompatibility of β-tricalcium phosphate (β-TCP) with the addition of alumina. The composites are produced by powder metallurgy. The study reveals that the addition of alumina improves the mechanical properties of the composites, with the 10% alumina composite exhibiting the highest values. The microstructure analysis indicates that the addition of alumina forms a new phase, which improves the interfacial bonding between the β-TCP and alumina phases. The authors suggest that the composites could be used as bone substitute materials in load-bearing applications and emphasize the importance of the careful selection of processing parameters.⁶³ Chakravarty et al examined chitin, polylactide, and hydroxyapatite composites using ionic liquid solutions. With the addition of hydroxyapatite (HAP) and chitin, the composites showed improved mechanical properties and were found to be biocompatible based on cell culture experiments.⁶⁴ Tong et al analysed a biodegradable implant made from Zn-5Ge alloy and it was observed that the mechanical properties, corrosion resistance, and biocompatibility are improvised because of its fine-grained microstructure.⁶⁵ Dambatta et al investigated the potential of using a Zn-3Mg alloy as a biodegradable implant material and investigated its effects on heat treatment.⁶⁶ Wątroba et al developed a biodegradable Zn-Ag-Zr alloy and characterized its mechanical, microstructural, and corrosion properties.⁶⁷ Cai et al prepared biodegradable Mg-Zn alloys with varying Zn concentrations and found that the addition of Zn improves mechanical properties but decreases corrosion resistance.⁶⁸ Li et al discussed the formation of corrosion products on Mg-Ca alloy surfaces during degradation and their potential effect on promoting bone tissue regeneration.⁶⁹ Kottuparambil et al investigated the impact of adding zinc and rare-earth elements (Gd, Dy, Nd) to magnesium for biomedical applications as an Mg-Zn-Gd alloy. The author observed the stacking of the lamellar period and observed that it shows good corrosion resistance, whereas tensile strength was highest with Mg-Zn-Gd-Nd alloy because of the uniform distribution of Mg-Nd precipitate. These alloys also don’t show any toxic effect on surrounding tissues during in vivo analysis.⁷⁰ Gorejová et al review degradable metallic biomaterials, which aid tissue healing by gradually degrading. It was highlighted that Mn and Zn as good alloying materials, whereas calcium phosphate-based ceramic and polymers are good options for coatings.⁷¹ Codescu et al investigated the potential use of a high entropy alloy, FeMoTaTiZr, for bone implants. The addition of Zn to hydroxyapatite (HA) coatings on the alloy improved its biocompatibility and promoted the osteogenesis of stem cells. The thickness and morphology of the HA coatings were also affected by Zn concentration. The study suggests that FeMoTaTiZr with Zn-based HA coatings has the potential for use in bone implants, with improved biocompatibility and osteogenesis.⁵⁴ The potential of zinc alloys as biodegradable load-bearing bone implants was examined by Yang et al, they investigated different alloying elements and their impact on the alloys’ corrosion behaviour, mechanical properties, and biocompatibility. Adding calcium, magnesium and rare earth elements such as neodymium and yttrium to zinc alloys can improve biocompatibility, mechanical properties, and corrosion resistance for bone implant applications.⁷² Suryavanshi et al investigated a biodegradable composite biomaterial for bone screws containing polycaprolactone, hydroxyapatite, and tricalcium phosphate. The composite material has favourable mechanical properties and degradation rates and can be easily produced by injection molding.⁷³ Xai et al investigated the biodegradable Mg-Li-Ca alloy-based bone implants. They prepared the alloys and evaluated their properties in vitro and in vivo by implanting them into the femur of rats. The authors found that the Mg-Li-Ca alloys had good biocompatibility and controllable degradation rate, and the addition of calcium improved new bone formation and mechanical properties.⁷⁴ Montufar et al developed a composite material that combines alpha-tricalcium phosphate and iron particles, aiming to achieve a bone fracture reduction material with high mechanical strength, biodegradability, and cytocompatibility. The composites were prepared using the powder metallurgy technique. The study found that the α-TCP-Fe composites possess high mechanical strength and biodegradability while being cytocompatible.⁷⁵ Singh et al investigated the surface modification of Ti-6Al-4V with hydroxyapatite to improve corrosion protection and wear resistance.⁷⁶ Doe et al found that calcium-modified acid-etched pure titanium is a suitable biomaterial for implantation with good biocompatibility, stability, and biosafety.⁷⁷ Chen et al compared the properties of TiTaNb MEA and Ti-10Ta-6Nb films and found that TiTaNb MEA films have better biocompatibility and wear resistance.⁷⁸ Mustafi et al designed a new Ti35Zr15Nb25Ta25 MEA,⁷⁹ while Hu et al developed a TiZrNb MEA for biomedical applications.⁵³ Yang et al investigated the bio-corrosion behaviour and biocompatibility of the TiZrHfNbTa HEA and found potential for biomedical applications.⁸⁰

In Table 2, we have compared the properties and features evaluation of different materials that are used in different applications for fracture bone repair. Based on the information presented in the table, it appears to be a list of various biomaterials used for implant design, along with their properties and compatibility. The table includes a range of materials, such as β-TCP, chitin/PLA/nHAp, AZ31, Zn, Mg, Fe, stainless steel, Ti, Co-Cr, and various alloys. The properties of these materials suggest they may be used for a variety of implant types, such as orthopaedic implants, dental implants, or cardiovascular implants. The table provides information on the tensile strength, modulus of elasticity, corrosion/degradation rate, and manufacturing method of each biomaterial, which can help in selecting the appropriate material for the particular application. The compatibility of each biomaterial is also listed, which is important for ensuring that the implant is well-tolerated by the body and does not cause any adverse reactions or complications. From the table, it was observed that most of the non-biodegradable materials are medium entropy materials, whereas, in biodegradable materials, there exist low, medium, and high entropy materials. Therefore, a comparative evaluation is presented in Fig. 4, among biodegradable low entropy (BLE), biodegradable medium entropy (BME), biodegradable high entropy (BHE), and non-biodegradable medium entropy (NBME). In Fig. 4(a), tensile strength is compared among BLE, BME, BHE, and NBME, and observed that tensile strength in the pattern of NBME > BHE > BME > BLE. Whereas in Fig. 4(b) corrosion rate or degradation rate was compared among different biomaterials and observed a pattern as BME > NBME > BHE > BLE. Therefore, this would suggest selecting biodegradable materials over non-biodegradable materials. Among biodegradable materials, BHE materials would be selected if high tensile strength with a moderate degradation rate is required, whereas if the degradation rate needed to be high, then BME materials would be selected.

Close

Fig. 4.

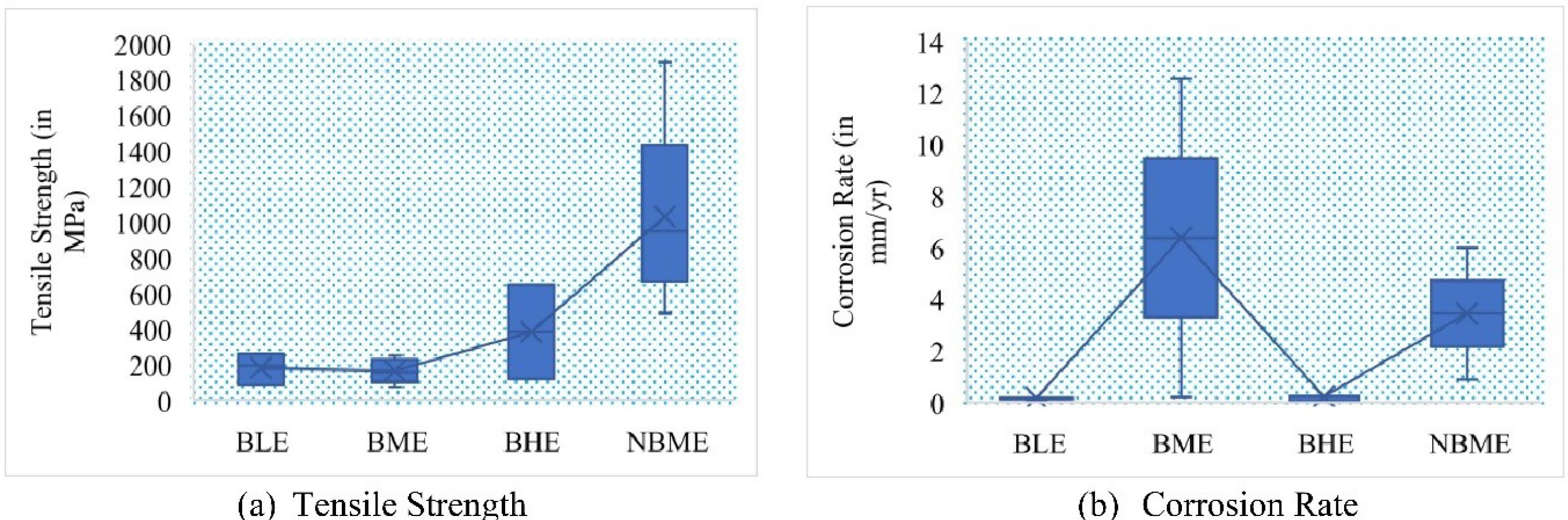

Comparison of Tensile Strength and Corrosion Rate of Low, Medium and High Entropy Biomaterials.

Fig. 4.

Comparison of Tensile Strength and Corrosion Rate of Low, Medium and High Entropy Biomaterials.

Biodegradable implants morphology and geometry optimization

Conventional bone implants are typically made of stainless steel or titanium, but biodegradable implants are becoming more popular as they can avoid complications and the need for a second surgery.^85,86 Biodegradable implants are medical devices that are designed to be absorbed and broken down by the body over time. They are made from materials that are biocompatible and can be safely metabolized by the body, such as polymers or metals that can be naturally absorbed or excreted.^87-90 Biodegradable implants are commonly used in a variety of medical applications, including orthopaedic surgery, cardiology, and tissue engineering. Examples include absorbable sutures, bone screws, and drug delivery.^91-95 The benefits of biodegradable implants are that they eliminate the need for a second surgery to remove the implant, reduce the risk of complications, and promote healing.⁹⁶ Moreover, they are also used as a supporting device for healing bone fractures.⁹⁷ Though not all implant materials have the same biocompatibility and mechanical strength. This creates a dilemma for researchers while selecting appropriate material and their respective designing processes to support optimal performance and safety^98-100 Among all available biomaterials, Magnesium-based (Mg) materials are considered ideal for orthopaedic applications because of their mechanical properties, biodegradability, and biocompatibility.⁹⁹ It was also reported that the success of biodegradable implants depends on their morphology optimization¹⁰¹. The ultimate goal is to maximize mechanical performance with minimal material quantities and optimal morphology designs, which would create a successful biodegradable implant for fracture healing.

The morphology or structural design of a biodegradable implant is important in determining its degradation behaviour, which is critical for maintaining structural integrity and providing mechanical support until the bone heals completely.^102-106 A properly designed implant morphology can improve the degradation behaviour by increasing surface area through porous structure, optimizing porosity to promote tissue ingrowth and vascularization, and balancing mechanical properties with degradation rate.¹⁰⁷ This can ensure optimal mechanical support and avoid the need for a second surgery for implant removal.^104,108-116 The application of implant plates in orthopaedic surgery has been around for decades.^111-113 Three types of compression plates are recognized including dynamic compression plate (DCP), limited-contact dynamic compression plate (LC-DCP), and locking compression plate (LCP).^104,110-119 Among these, the LCP has shown improved properties for supporting fractured bones for promoting a good healing process.^118,119 Along with plates, Buttress threaded screws also provide better support to the fractured bone and also support flexibility to the fracture ends. This also aids in better callus formation during early healing stages.^104,114-116 Then, Subasi et al designed an adjustable locking plate (ALP) for segmental bone fractures, as ALP shows advantages over LCP by providing improved anatomical fit, screw fixation, and reduced need for plate contouring. This design consists of a rack-pinion mechanism for better adjustment and customization.¹⁰² Anitha et al also investigated a modified LCP design over traditional LCP that improves its stability concerning bending and torsional forces. The modification entails screw-locking only the four holes located in the proximal and distal ends while filling the rest of the holes with the material. It is recommended that the screw density for the plate be less than 0.3-0.4 for simple fractures and 0.4-0.5 for comminuted fractures.¹⁰³ Chandra et al presented a biodegradable embossed LCP (BELCP) and compared it with traditional LCP especially designed for orthopaedic implant applications. The author compared the degradation and mechanical strength of LCP and BELCP through finite element analysis (FEA).¹⁰⁴ The result shows that BELCP has higher mechanical performance and is safer than LCP, as presented in Fig. 5.

Close

Fig. 5.

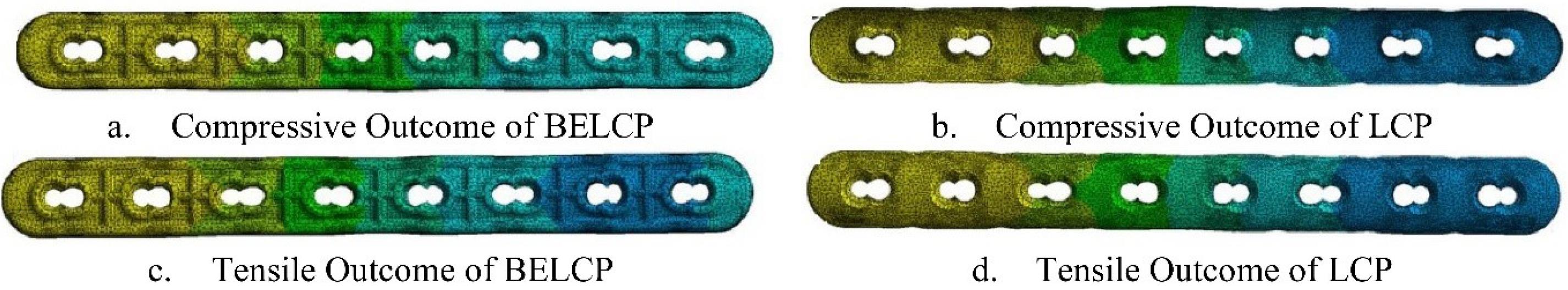

Deformation of BELCP and LCP.

Fig. 5.

Deformation of BELCP and LCP.

Table 3 provides a comparison of various biomaterials used in implant design, along with their geometrical morphology analysis. The table includes data from various studies, such as plate design (locking compression, adjustable locking, embossed locking compression), screw design (interference screws with a quadrangle drive design, buttress threaded), and nail and plate design (intramedullary nailing). The base materials used in these designs include magnesium alloy, titanium alloy, and stainless steel, among others. The Von Mises stress values for the different implants range from 25 MPa to 1141 MPa, indicating the strength and performance of these biomaterials for implant design. Fig. 6 shows the box-plot diagram for von Mises stress for both biodegradable and non-biodegradable materials, which shows that biodegradable materials show approx. 200 MPa which can be modified by proper composite selection.

Close

Fig. 6.

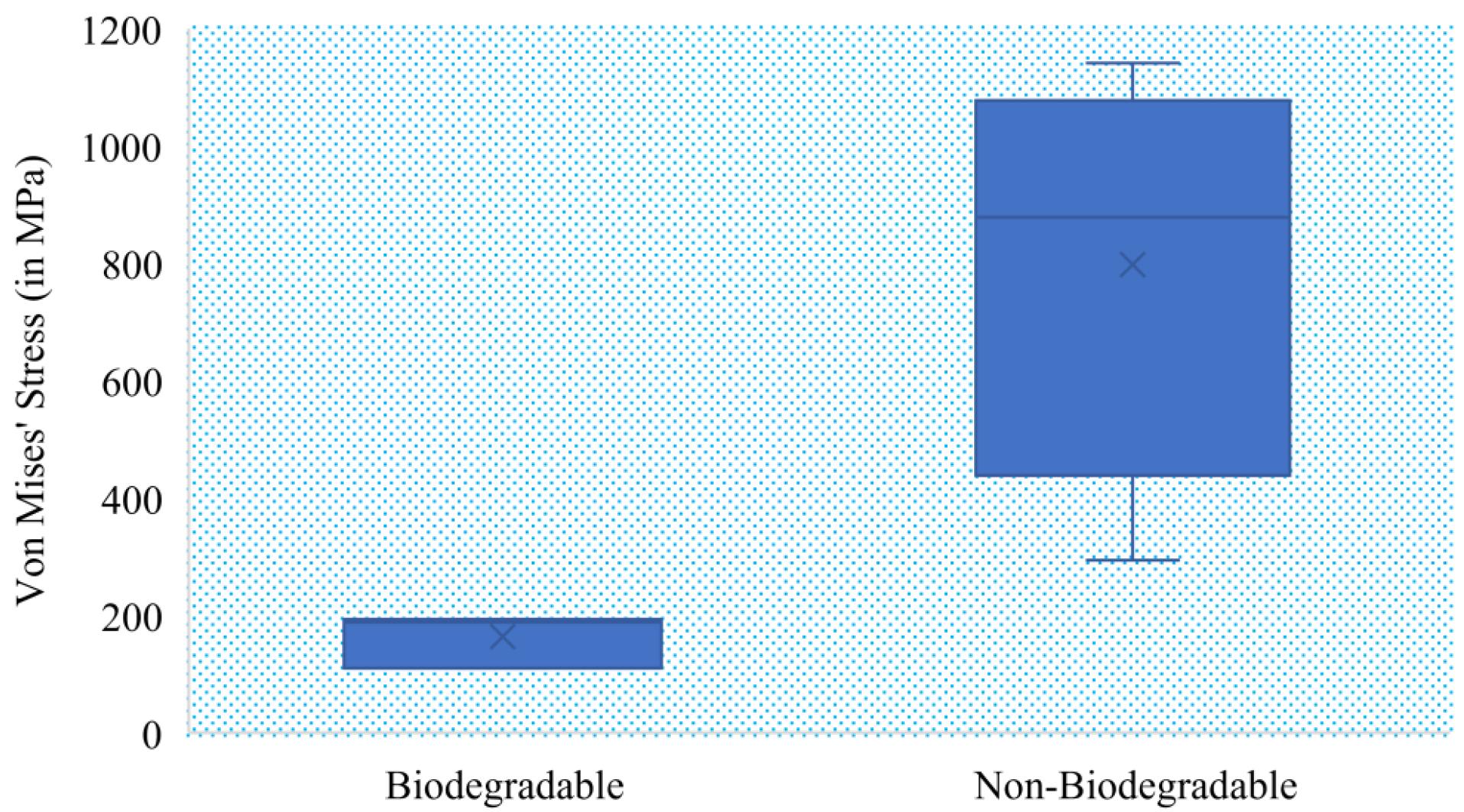

Von Mises stress analysis for biodegradable and non-biodegradable implants.

Fig. 6.

Von Mises stress analysis for biodegradable and non-biodegradable implants.

Implant design optimization and their correlation with biocompatibility

The aging population and increasing number of accidents have led to an increase in demand for bioimplants such as joint replacements, femur bone implants, and dental implants, as these can improve mobility and functionality.^121-123 Then some question arises for researchers while designing implants such as, which material to select, which process to adopt for fabrication and manufacturing, and which surface modification technique results in biological advancement.^124-128 Among them, which process contributes the most in achieving optimal biocompatibility^129,130 and modification contributes the most. In Fig. 7, the evolution of bioimplant advancement and optimization in biomaterial manufacturing and optimization are presented and discussed further.

Close

Fig. 7.

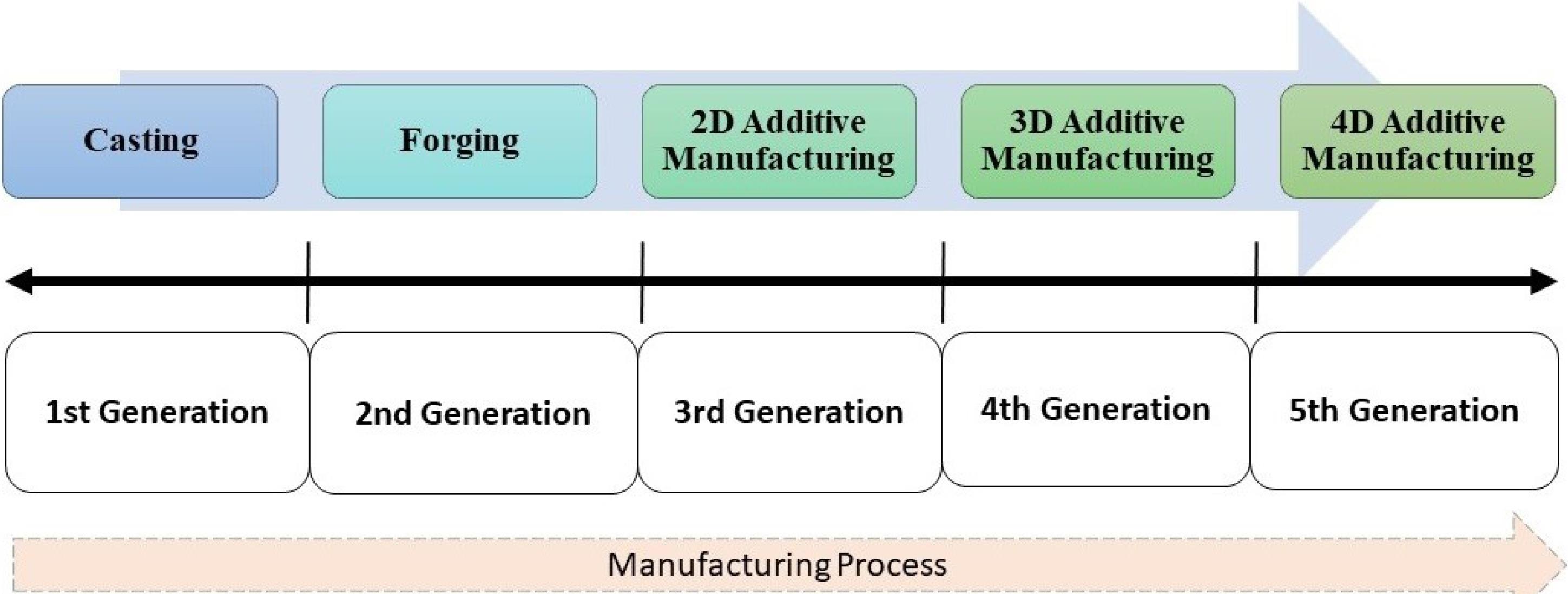

Bioimplant manufacturing process evolution.

Fig. 7.

Bioimplant manufacturing process evolution.

Manufacturing advancements for biocompatibility optimization

Biomaterials for implant design are widely used in various applications, such as hip replacement, dental implants, and tissue repair.^13,48 Biodegradable implants are designed to be absorbed by the body without any toxic effects during the healing process. Various techniques are used for the manufacturing of biodegradable implants, such as machining,¹³¹ additive manufacturing,¹³² immunomodulatory,¹³³ fabrication,¹³⁴ casting,¹³⁵ powder metallurgy,¹³⁶ wrought techniques.¹³⁷ Each technique has its unique advantages and is suitable for different types of implants. For example, casting is suitable for biodegradable magnesium alloys, while powder metallurgy is used for densification. Additive manufacturing, particularly 3D/4D bio-printing, is more efficient than traditional manufacturing methods in producing bio-implants with complex geometries or custom requirements. Recent research has shown promising developments in 3D bio-printing for tissues or organs. Surface topological advancements are crucial for manufacturing optimization, which can be achieved through various surface treatment and coating methods.⁹⁵ such as “plasma spraying”,¹³⁸ “sputter coating,”¹³⁹ and “ion-beam-assisted deposition”,¹⁴⁰ to improve the mechanical properties, bio functionality, and biocompatibility of biomaterials. But with 2D AM, the creation of complex geometries is not possible. Apart from this 3D AM also reduces material wastage and time.¹⁴¹ This section compares the biocompatibility optimization achieved through various additive manufacturing techniques concerning cost, resolution, speed, surface finish, residue, and biocompatibility of the produced parts and inferred the following:

• The 3D/FDM technique using Composites¹⁴² has overall low ratings for scaffolds, indicating it may not be the optimal choice.

• Mg-alloy¹⁴⁴ used in orthopedics with the 3D/SLA technique appears to have higher costs, resolution, speed, and an average surface finish and biocompatibility.

• Composites,¹⁴⁸ Composites,¹⁴⁹ and Composites,¹⁵⁰ which are used for wearable devices, drug release devices, and scaffolds respectively, and processed with 4D techniques, show a high surface finish and biocompatibility rating.

• Based on the provided literature,^142-150 following conclusions can be inferred:

• Material Variety: A variety of materials used in additive manufacturing, ranging from different types of composites to metals like Mg-alloy, Ti-6Al-4V, and Co-Cr-Mo. This suggests a wide range of materials available for different biomedical applications.

• Advancements in Biocompatibility: The materials processed using 4D techniques, specifically with Composites^148-150 consistently demonstrate high biocompatibility. This indicates advancements in 4D additive manufacturing techniques leading to better biocompatible outcomes.

• Cost versus Quality Trade-off: Materials such as Mg-alloy¹⁴⁴ and Ti-6Al-4V¹⁴⁵ used for orthopaedic applications have high costs. However, they also exhibit high resolution, speed, and satisfactory surface finish. This suggests that for critical applications like orthopedics, higher costs might be associated with better quality outcomes.

• Composites in Wearable and Drug Release Devices: 4D techniques used with composites demonstrate high biocompatibility and surface finish, especially in applications like wearable devices and drug release devices. This suggests that composites might be a preferred choice for these applications due to their adaptability and performance.

• Consistent Low Residue: Across all materials and techniques, the residue is consistently rated as low. This implies that additive manufacturing techniques, in general, leave minimal residues, an essential characteristic for biomedical applications.

Correlation of biomaterials with biodegradation rate and biocompatibility

The biodegradation rate and biocompatibility of a biomaterial are affected by various factors such as chemical composition, surface properties, mechanical properties, manufacturing method, and size and shape of biomaterial.¹⁵¹ For example, the chemical composition of a biomaterial plays a critical role in determining its biocompatibility and biodegradation rate, while surface properties like roughness and hydrophobicity can affect cell adhesion and tissue growth.¹⁵² Similarly, the mechanical properties of a biomaterial, manufacturing method, and size and shape can also affect its biocompatibility and biodegradation rate.^153-159 Understanding these factors can help design and develop biomaterials with improved biocompatibility. According to the study presented in the above sections, biomaterials such as iron (Fe), magnesium (Mg), and zinc (Zn) have been explored as potential biodegradable implant materials. However, the slow degradation rate of Fe and the hydrogen gas accumulation associated with Mg alloys have reduced their clinical efficacy.¹⁶⁰ According to the studies presented in the field of biomaterials, it was observed that the most promising materials are Zn-Mg alloys, as they show optimal corrosion rate, nontoxic response, and retain optimal biocompatibility.¹⁶¹ The addition of certain elements to Zn-Mg alloy components can modify important physical characteristics to improve their biodegradation rate.^162,163 Xio et al added 0.05% Mg concentration with Zn and prepared a biocompatible alloy that shows optimal antibacterial activity.¹⁶⁴ Yang et al increased the Mg concentration up to 0.4% and 0.8% along with 0.8% of Li to prepare a biodegradable composite, 0.4Mg% achieved the best tensile strength of 646.69 ± 12.79 MPa, whereas 0.8Mg% achieved best elongation rate 103.27 ± 20%.⁷² Then Mg% concentration was increased up to 1% by Gong et al¹⁶⁵ He prepared the alloy using hot extrusion, and it was reported that extrusion significantly reduced the grain size and corrosion rate. Shen et al prepared the alloy with 1.2% Mg concentration using the hot extrusion process along with surface treatment and exhibited higher mechanical strength and also reported excellent hemocompatibility with no signs of thrombogenicity.¹⁶⁶ Kubásek et al used 5% Mg concentration to prepare a biodegradable composite using powder metallurgy. It reported good biocompatibility and ultimately improved the healing process of the bone.¹⁶⁷ Huang et al prepared the composite with 1.6% Mg concentration prepared with equal channel angular pressing (ECAP) and reported good mechanical strength.¹⁶⁸ Then, Dambatta et al improved the Zn-Mg alloy by increasing the concentration to 3% and prepared it with ECAP, which significantly decreased the grain size and improved the mechanical strength.¹⁶⁸ Liu et al used a composite with a small concentration of Ca and Sr with 1.5% Mg and reported good mechanical strength as compared to base Zn-Mg alloy.¹⁷⁰ Yang et al prepared a composite with 1.5% Mg with 0.1% Ca, whose degradation rate is compatible with the healing of tissues.¹⁷¹ Levy et al examined the potential of Zn alloy with 1% Mg and Zn alloy with 1% Mg and 0.5% Ca and reported that Zn alloy with 1% Mg has relatively good corrosion resistance.¹⁷²

In Fig. 8a, a comparison of different concentrations of Mg is presented concerning corrosion rates of different composite materials made of zinc (Zn) and magnesium (Mg). Table 4 lists five different composite materials with varying concentrations of magnesium: Zn-0.1Mg, Zn-0.4Mg, Zn-0.8Mg, Zn-1Mg, and Zn-1.5Mg. Biodegradable implants require a moderate to high corrosion rate to gradually degrade and be absorbed by the body over time.¹⁷⁹ The corrosion rate should be controlled and not too high to prevent the implant from degrading too quickly and affecting its mechanical stability.¹⁸⁰ The ideal corrosion rate should match the expected healing rate of the surrounding tissue, which depends on factors such as tissue type, implant location, and duration of implantation.¹⁸¹

Close

Fig. 8.

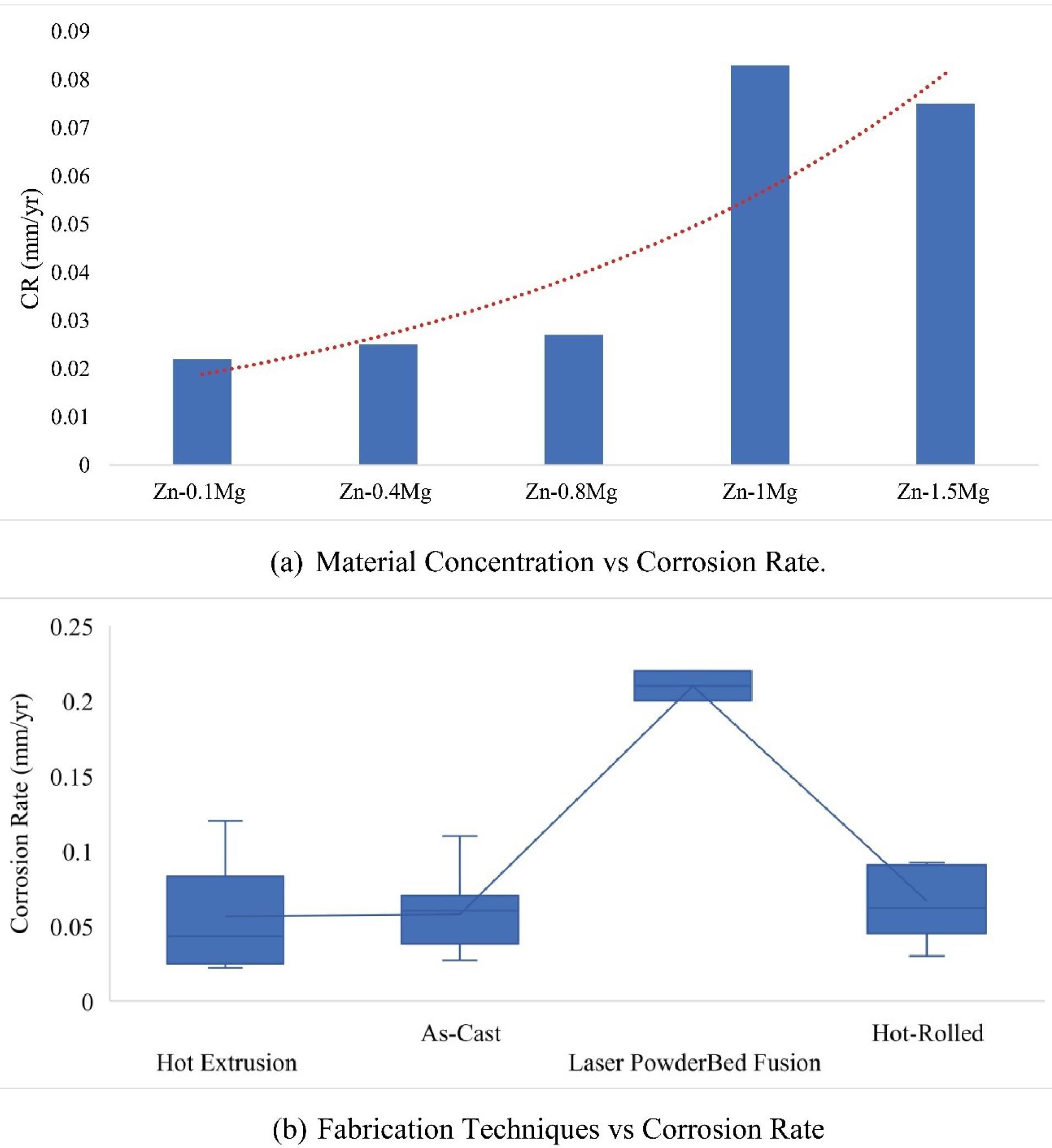

Correlation of material concentration and fabrication techniques with corrosion rate.

Fig. 8.

Correlation of material concentration and fabrication techniques with corrosion rate.

Fig. 8b summarizes the correlation of corrosion rates obtained using different processing techniques used to produce a material, with each technique represented by a box plot showing the distribution of corrosion rates. The box plot for each technique represents the interquartile range (IQR) of the data, with the median value represented as a line within the box. The As-Cast processing technique has the highest median corrosion rate, followed by Laser Powder-Bed Fusion and Hot Extrusion, whereas Hot-Rolled has the lowest median corrosion rate. The box plot for the As-Cast processing technique has the largest range of data, with some outliers at higher corrosion rates. On the other hand, the box plots for the other three processing techniques show a more compact range of data with no outliers.

Discussion

Results presented in Table 4 are used to perform statistical analysis of Mg% concentration in bio-implant alloys. This test was conducted on experimental data provided by the researcher’s experiments.^{72,147-161,164-172,174-178} For statistical analysis,¹⁸² Pearson correlation was performed between Mg% concentration with corrosion rate (CR). For this Mg concentration is taken.^72,165-167 The Pearson correlation coefficient is evaluated to measure the relationship among variables.⁷² Its value ranges from -1 to + 1.¹⁸³ If two variables show a correlation near + 1, that means they are highly correlated and vice versa. To evaluate statistical analyses, Minitab was used.¹⁸⁴

Then Pearson correlation was performed and it shows a correlation of approx. 0.962, which is near about 1. This means Mg% concentration is highly correlated with CR. According to data presented^72,165-167 regression analysis¹⁸⁶ was performed at the Mg% concentration and CR and was found to generate a regression equation, CR = 0.0043 + 0.05646 Mg%. This equation will help future researchers to select a more precise Mg% concentration rather than a hit-and-trial option. Then finally One-way ANOVA test was also conducted. One-way ANOVA^185,186 is a statistical method used to compare the means of three or more groups to see if there is a significant difference between them. The test uses one independent variable and one dependent variable, with the independent variable having three or more levels and the dependent variable being continuous. The F-statistic and p-value generated by the test are used to determine if there is a significant difference between the means of the groups. A high F-statistic suggests a significant difference, while a p-value less than 0.05 indicates that there is a statistically significant difference between at least two groups. According to data presented,^72,165-168 the one-way ANOVA test results in an F-value of 9.01 and a p-value of 0.011.

A thorough statistical analysis revealed a compelling positive correlation between the concentration of Mg% and the corrosion rate in bio-implant alloys. The Pearson correlation coefficient, measuring an impressive 0.962, signifies a robust association. Moreover, a regression equation was formulated to forecast the corrosion rate based on magnesium concentration. Furthermore, the one-way ANOVA test demonstrated a statistically significant distinction among the group means. This finding holds crucial implications for the selection of an optimal magnesium concentration in bio-implant alloys, aiming to minimize corrosion and enhance overall implant performance.

Conclusion

Non-degradable materials are predominantly used for repairing fractured bones but possess several drawbacks. These include their incompatibility with bone tissue, the potential release of toxins in the patient’s body, the occurrence of a stress-shielding effect, and the need for a second surgical procedure to remove them once the bone has healed. As a result, biodegradable materials are considered a superior alternative since they do not exhibit the aforementioned issues. An ideal biodegradable implant must provide adequate strength to support the damaged bone and degrade within the body without releasing any harmful substances during the bone regeneration process. The comparison of different biomaterials is presented to assess the compatibility of each biomaterial, which is vital for ensuring that the implant is well-tolerated by the body and does not cause any adverse reactions or complications. Then the tensile strength and corrosion rate or degradation rate among different biomaterials are compared. The findings suggest that, among biodegradable materials, BHE materials would be selected if high tensile strength with a moderate degradation rate is required, while BME materials would be selected if a high degradation rate is needed. From the analysis of the design morphology of plates and screws, it can be concluded that the Von Mises stress values show that BLCP can provide the necessary strength and performance. The comparison of biodegradable and non-biodegradable materials shows that biodegradable materials have a lower Von Mises stress value, but this can be improved by proper composite selection. After morphology optimization, the design and fabrication optimization of biodegradable alloy-based implants is done to achieve good biodegradability. From statistical analysis, it was found that there is a strong positive correlation between Mg% concentration and corrosion rate in bio-implant alloys. The Pearson correlation coefficient was 0.962, indicating a robust correlation and a regression equation was generated to predict the corrosion rate based on magnesium concentration. Additionally, the one-way ANOVA test showed a statistically significant difference between the means of the groups, which is important for selecting the appropriate magnesium concentration for bio-implant alloys to minimize corrosion and improve implant performance.

Competing Interests

The authors declare that there is no conflict of interest regarding the publication of this article.

Ethical Statement

Not applicable.
